NEC Thermo Tracer TS7302 W-Range Thermal Imaging Camera 320x240 IR FireWire Test

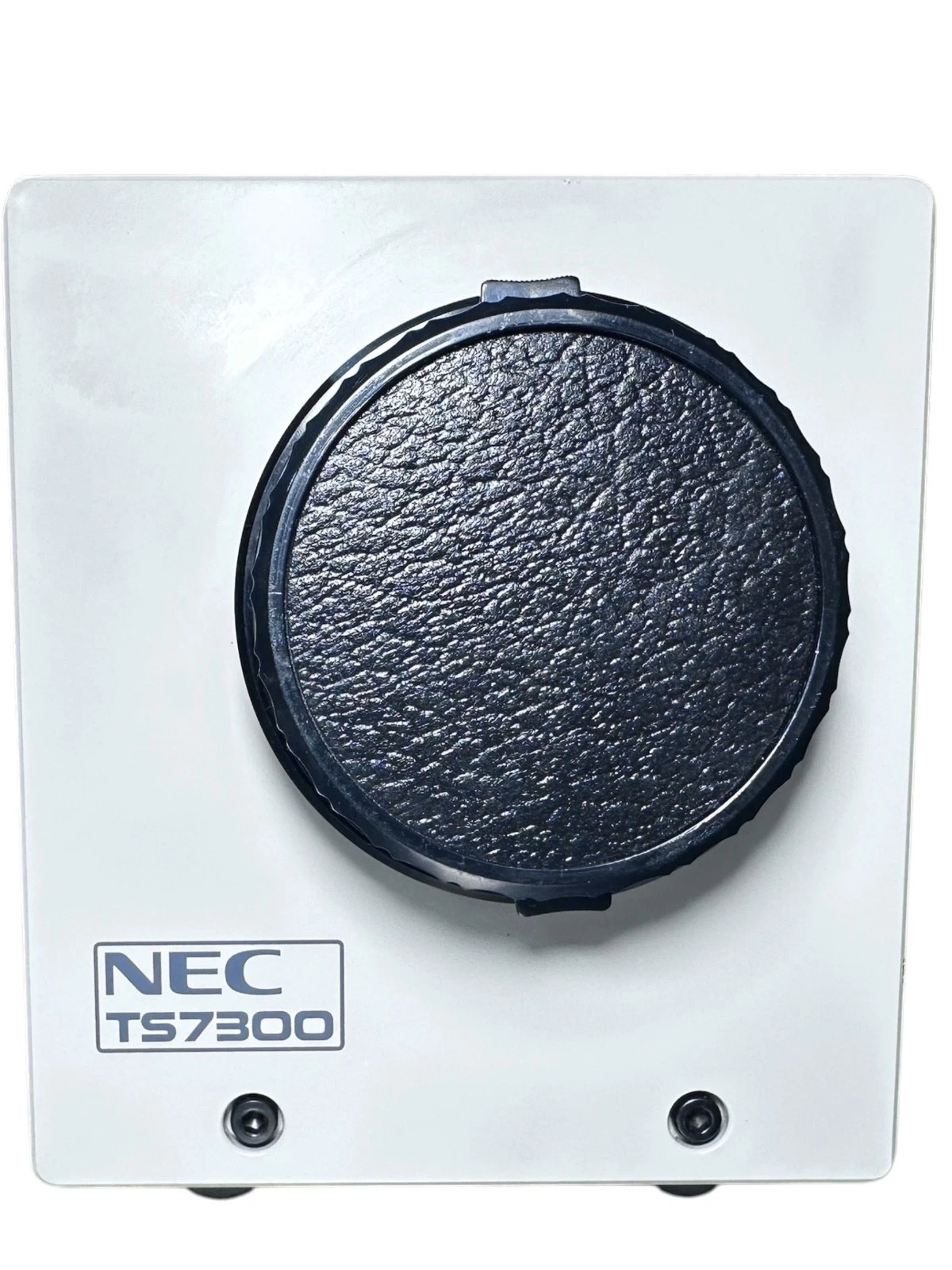

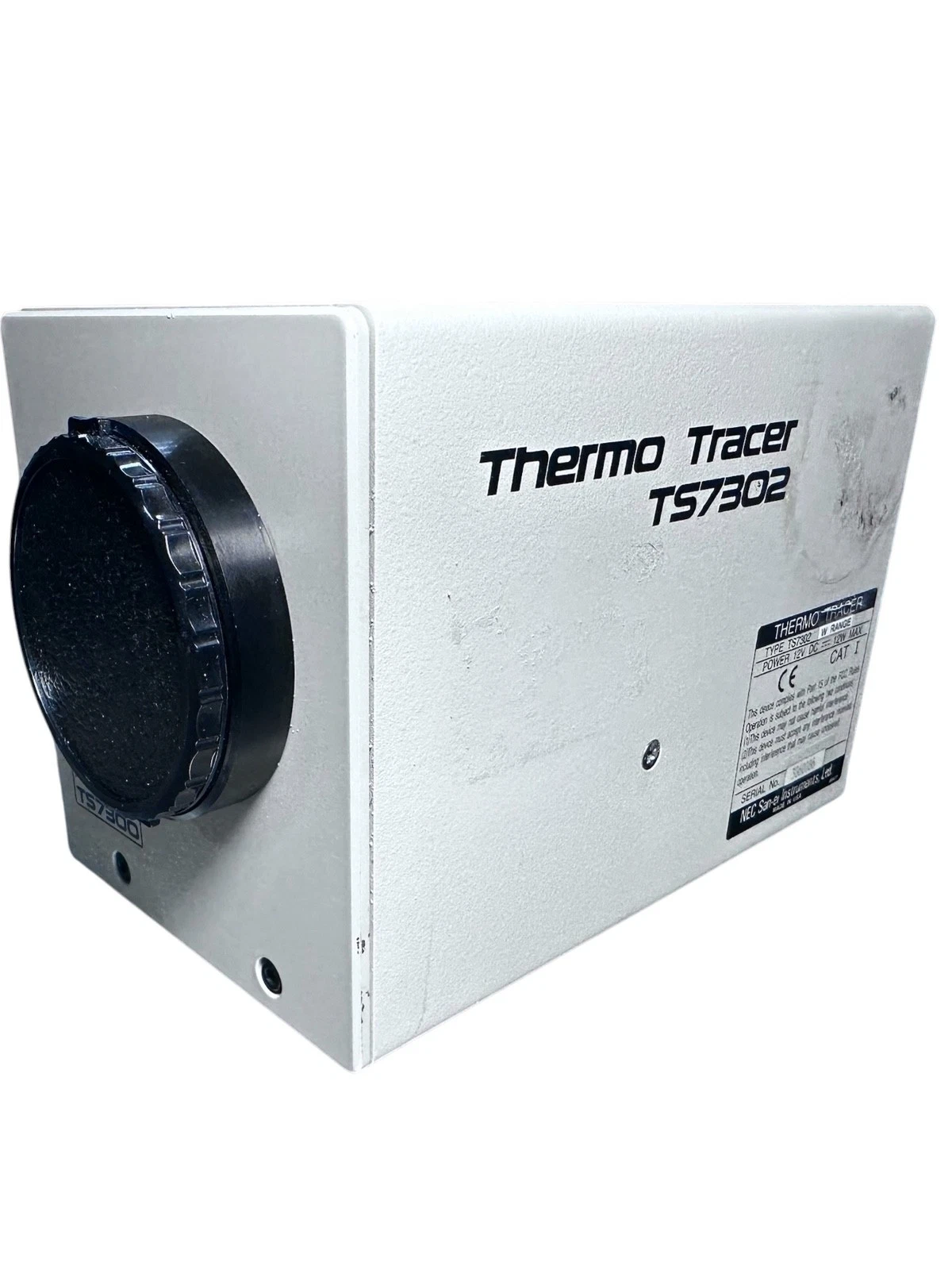

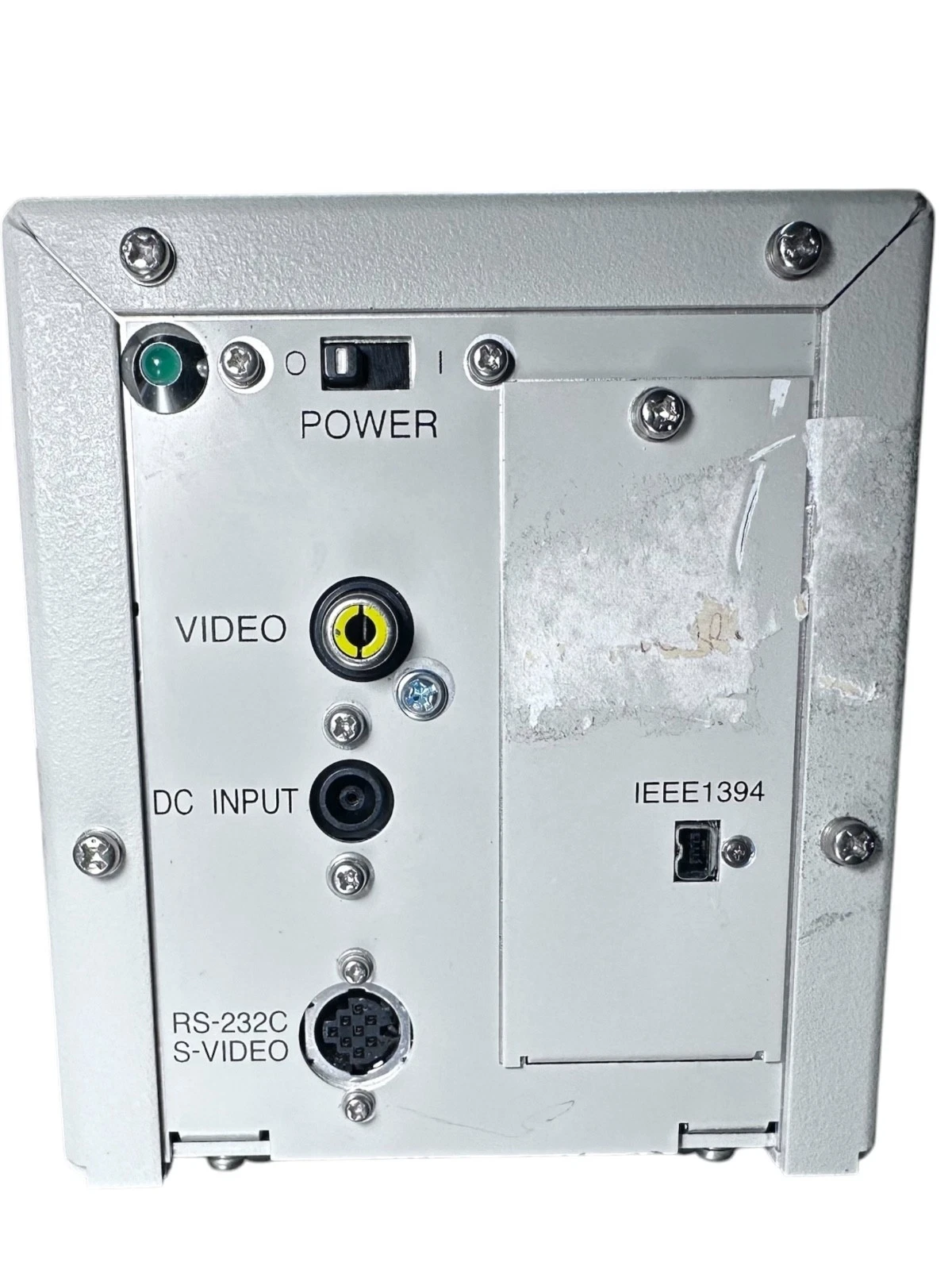

NEC San-ei Instruments Thermo Tracer TS7302 W-range infrared thermal-imaging camera, featuring a 320 × 240 uncooled microbolometer detector and an installed IEEE 1394/FireWire connection. Designed for fixed-installation thermography, the TS7302 provides non-contact thermal imaging and temperature measurement for industrial process monitoring, equipment inspection, quality control, and laboratory research. This is a dedicated thermal imager—not a conventional visible-light camera or infrared-illuminated security camera. IDENTIFICATION Manufacturer: NEC San-ei Instruments, Ltd. Product line: Thermo Tracer Model: TS7302 Configuration: W-range, as marked on the identification label Front panel marked NEC TS7300 PUBLISHED MODEL SPECIFICATIONS The following are manufacturer specifications for the model, not a new calibration report or certification of this individual unit. Detector: Uncooled focal-plane-array microbolometer Native thermal resolution: 320 × 240 pixels Infrared spectral response: 8–14 µm Standard W-range temperature bands: −40 to +120°C and 0 to +500°C Thermal resolution: 0.08°C in normal mode, Range 1 Published measurement accuracy: ±2% of range full scale Standard field of view: 29° horizontal × 22° vertical Instantaneous field of view: 1.58 mrad Standard focusing range: 0.5 m to infinity Listed frame rates: 7.5, 30, and 60 frames per second A/D resolution: 14-bit Digital zoom: 2× and 4× Nominal camera power: 12V DC Unit identification label: 12W maximum MODEL FEATURES Published features include automatic focus, level and sensitivity adjustment; emissivity correction; calibration/non-uniformity correction; color and monochrome display modes; image freeze; multi-point temperature analysis; maximum/minimum temperature display; and temperature alarms. Access to these functions depends on the appropriate controls, software, and system configuration. CONNECTIONS ON THIS UNIT RCA-style VIDEO output Combined RS-232C / S-VIDEO connector IEEE 1394 / FireWire port DC power input Rear power switch and indicator The manufacturer lists composite NTSC/PAL and S-video output capabilities. IEEE 1394 was an optional interface, and its connector is physically present on this unit. Digital communication and software compatibility are not separately certified in this listing. CONDITION Pre-owned and tested. The enclosure has scratches, scuffs, finish wear, and old label/adhesive residue, particularly on the rear and underside. Please inspect the photographs for the exact cosmetic condition and front optical surface. No claim of current calibration or certified temperature accuracy is made. Published specifications describe the original model capabilities and do not establish this unit’s present calibration. INCLUDED NEC Thermo Tracer TS7302 camera with front optical assembly Front protective cap Attached underside mounting block and rubber feet No power adapter, interface cables, computer, monitor, software, remote controller, manual, or calibration certificate is included. IMPORTANT COMPATIBILITY INFORMATION This is a legacy industrial camera requiring compatible power and viewing/control equipment. FireWire is not USB; computer operation may require legacy hardware, drivers, and software. Please verify your intended setup before purchasing. The optional high-temperature configuration extending to 2,000°C is not confirmed or represented as included. No outdoor/weatherproof housing is included. You will receive the exact camera pictured.
