Exact Electronics Model 501 VCF/Sweep Function Generator

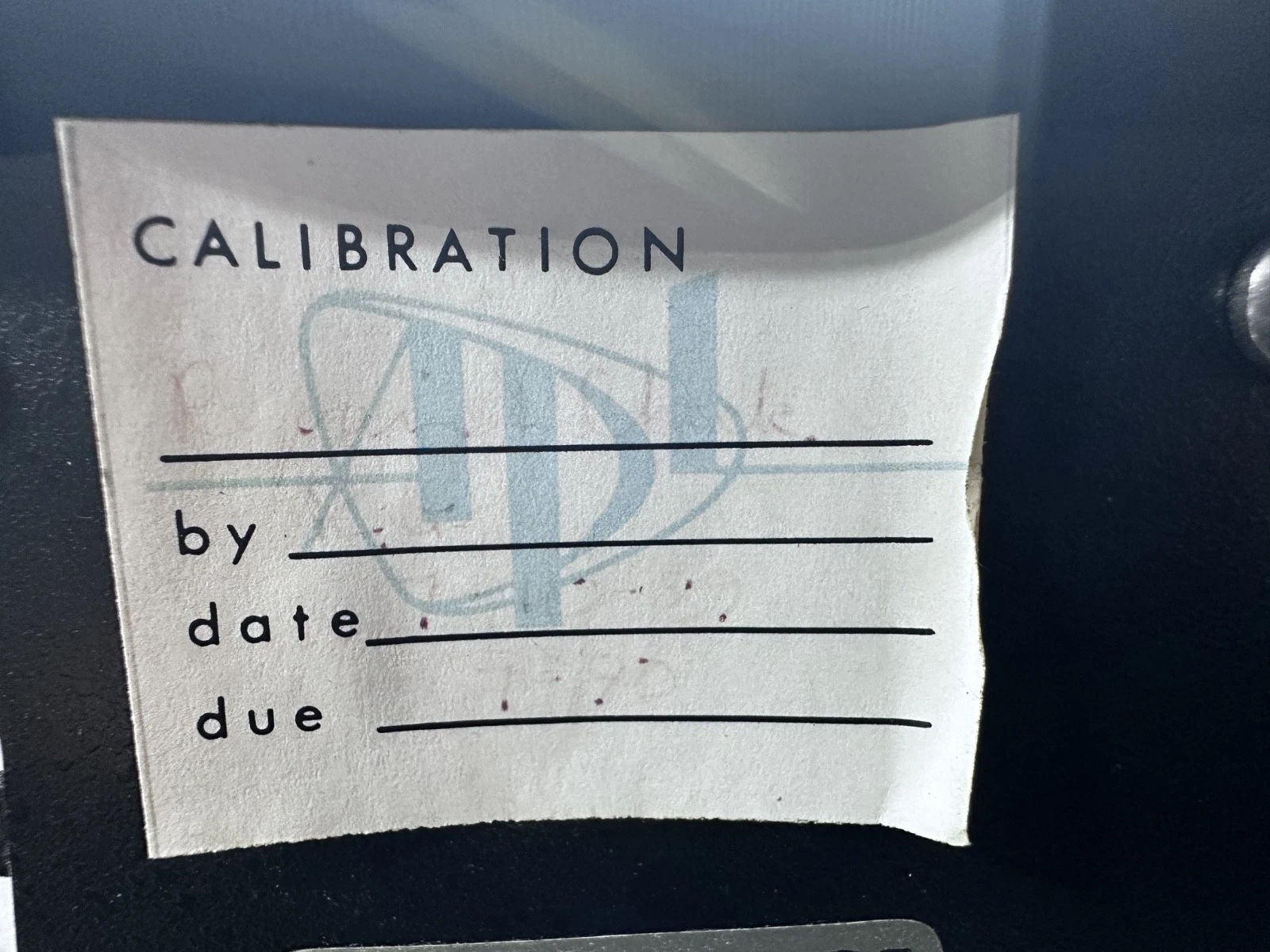

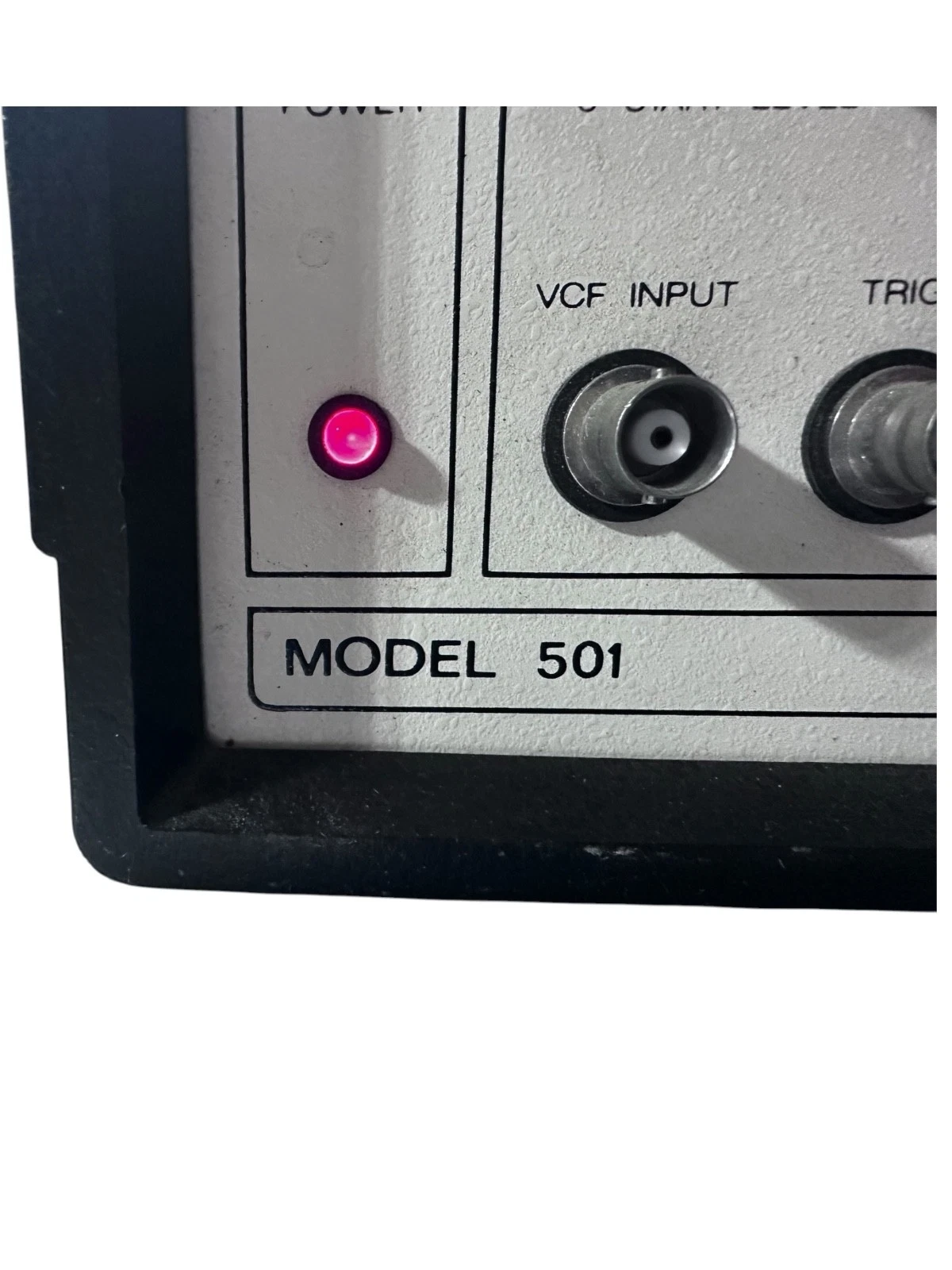

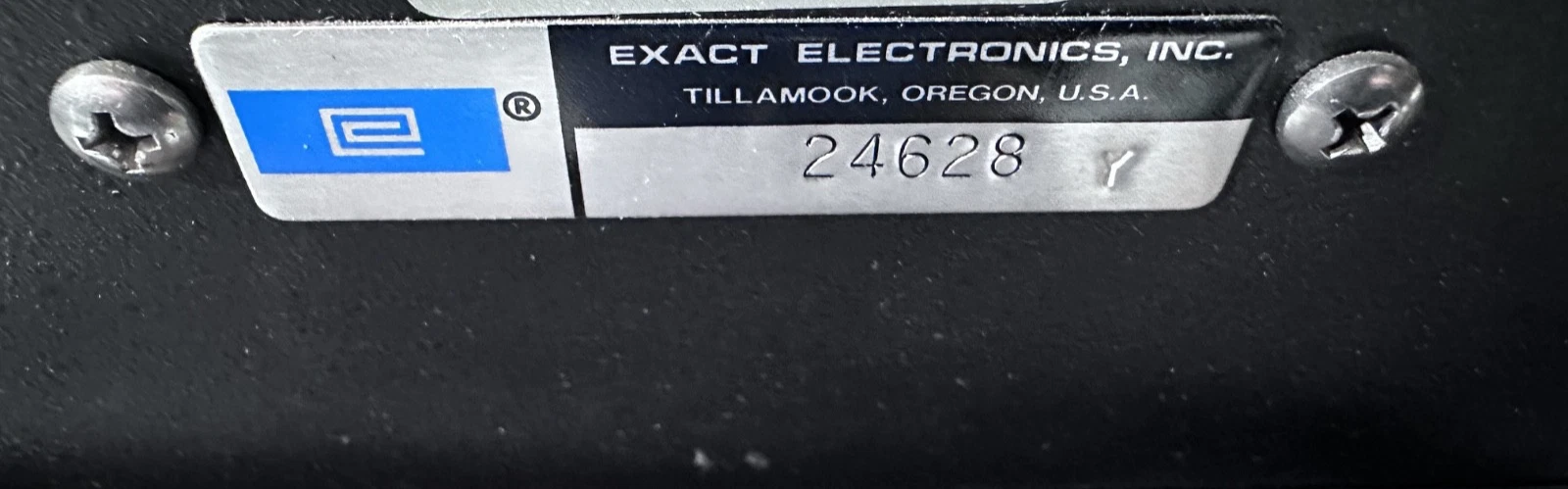

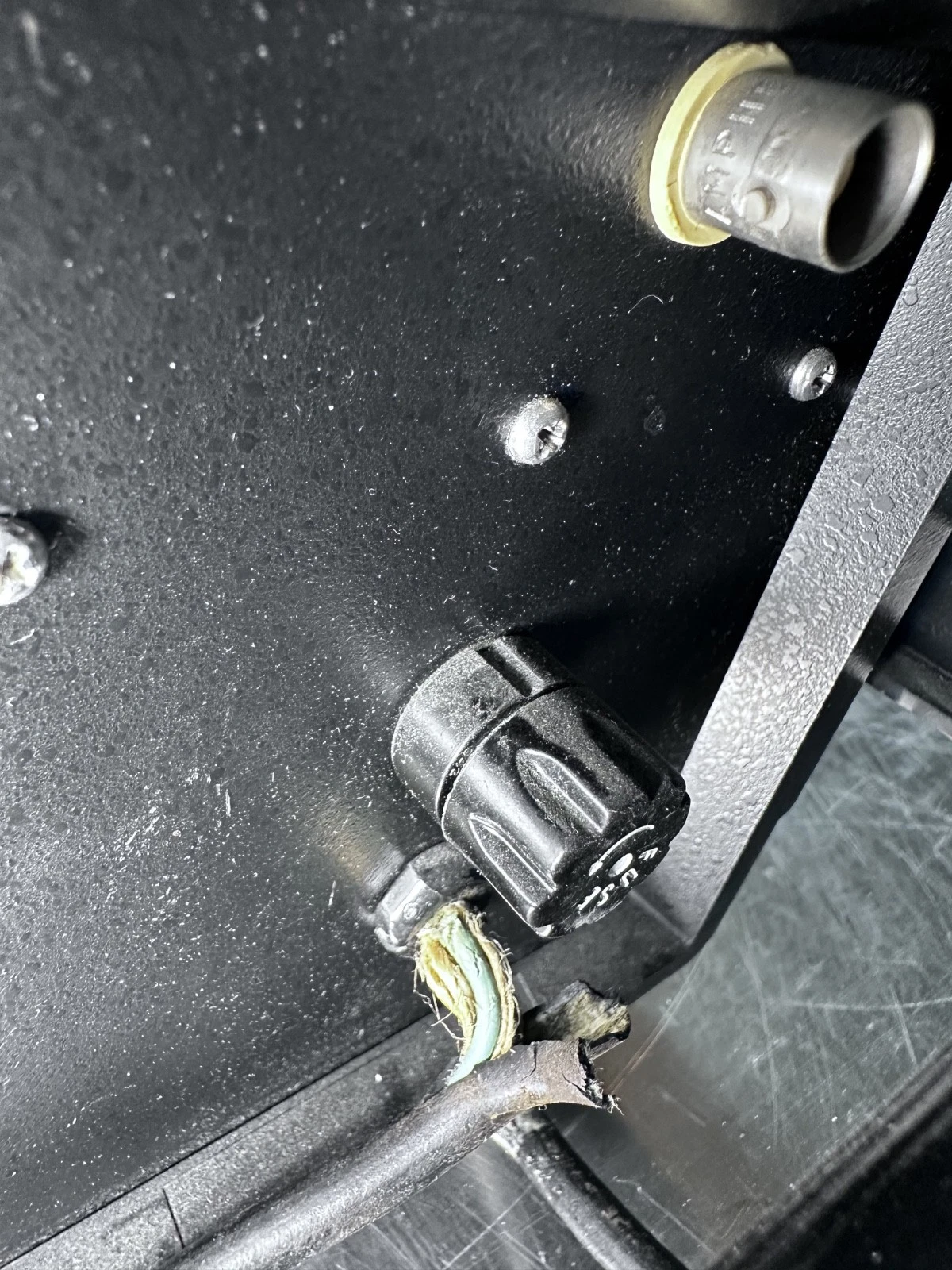

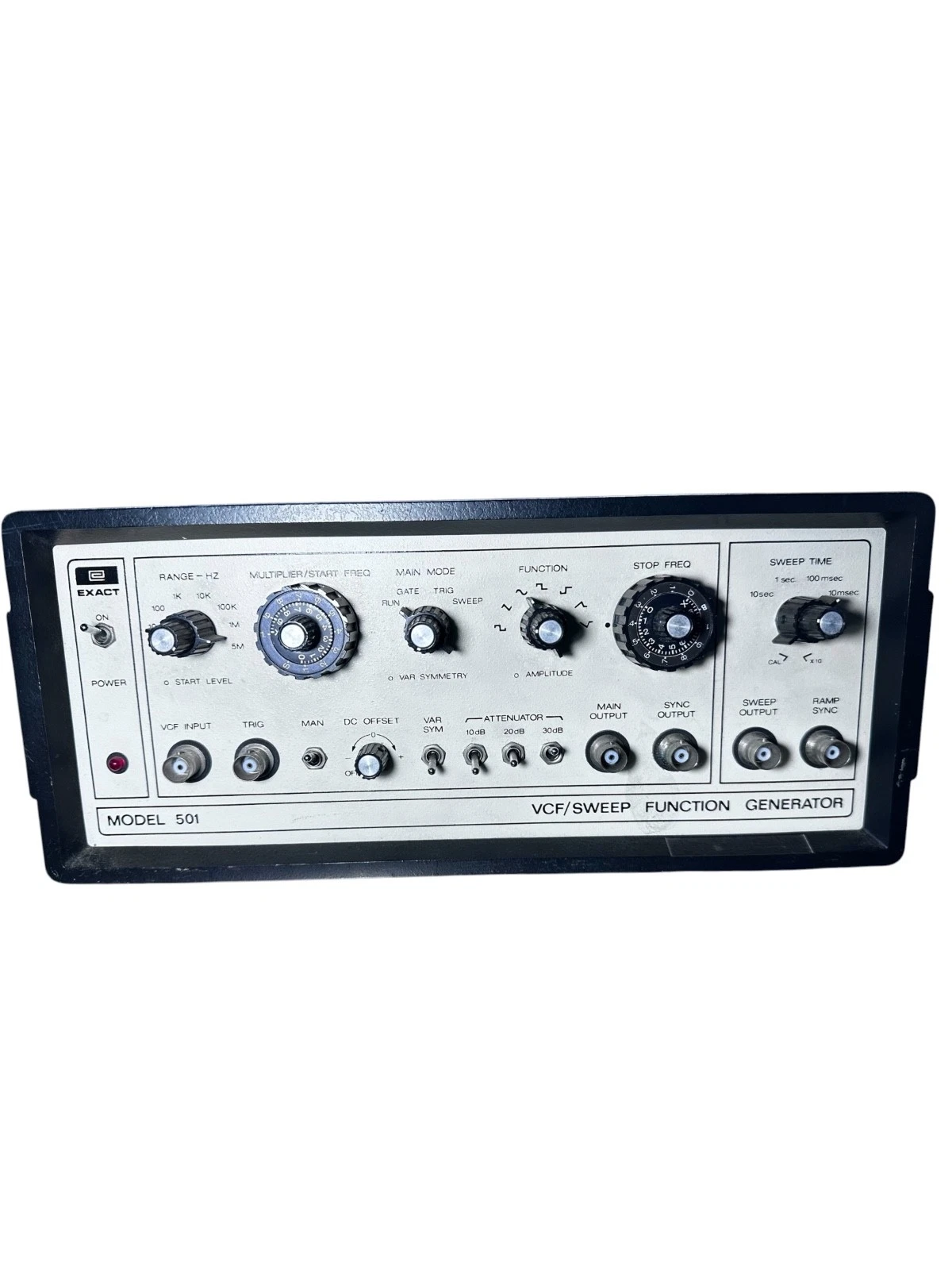

Vintage benchtop electronic test instrument manufactured by Exact Electronics, Inc., Tillamook, Oregon, USA. This Model 501 generates selectable electrical waveforms for circuit testing, troubleshooting, and laboratory applications, with adjustable frequency, amplitude, DC offset, and sweep controls. OPERATING CONDITION & REQUIRED CORD REPAIR The unit is operational, but the attached power cord has a split outer jacket near the point where it enters the chassis, exposing the internal insulated wiring. The cord and strain relief require inspection and repair or replacement by a qualified technician before further use. Sold as an operational instrument requiring power-cord repair—not as ready-to-use equipment. Calibration status and accuracy across all settings have not been verified. FEATURES & CONTROLS • Sine, square, and triangle waveform generation • Voltage-controlled frequency (VCF) input • Run, gate, trigger, and sweep operating modes • Frequency range selector with markings through 5 MHz • Multiplier/start-frequency and stop-frequency controls • Adjustable output amplitude and DC offset • Variable waveform symmetry control • Manual trigger control • Switchable 10 dB, 20 dB, and 30 dB attenuation • Sweep-time controls with 10-second, 1-second, 100-millisecond, and 10-millisecond markings • Front-panel BNC connections for VCF input, trigger input, main output, sync output, sweep output, and ramp sync • Adjustable carrying handle • Blue housing with black protective trim COSMETIC CONDITION Used condition with scratches, scuffs, finish wear, and labels from prior use. Please review the photographs for the exact cosmetic condition and the power-cord damage. IDENTIFICATION Brand: Exact Electronics Model: 501 Type: VCF/Sweep Function Generator Serial Number: 24628 Country of Manufacture: USA INCLUDED • Exact Electronics Model 501 instrument • Attached power cord requiring repair • Attached carrying handle No test leads, probes, manual, or additional accessories are included. The photographs show the actual item offered.
