Advanced Surgical Systems RF Output Distribution Backplane Board 220-029 Rev C

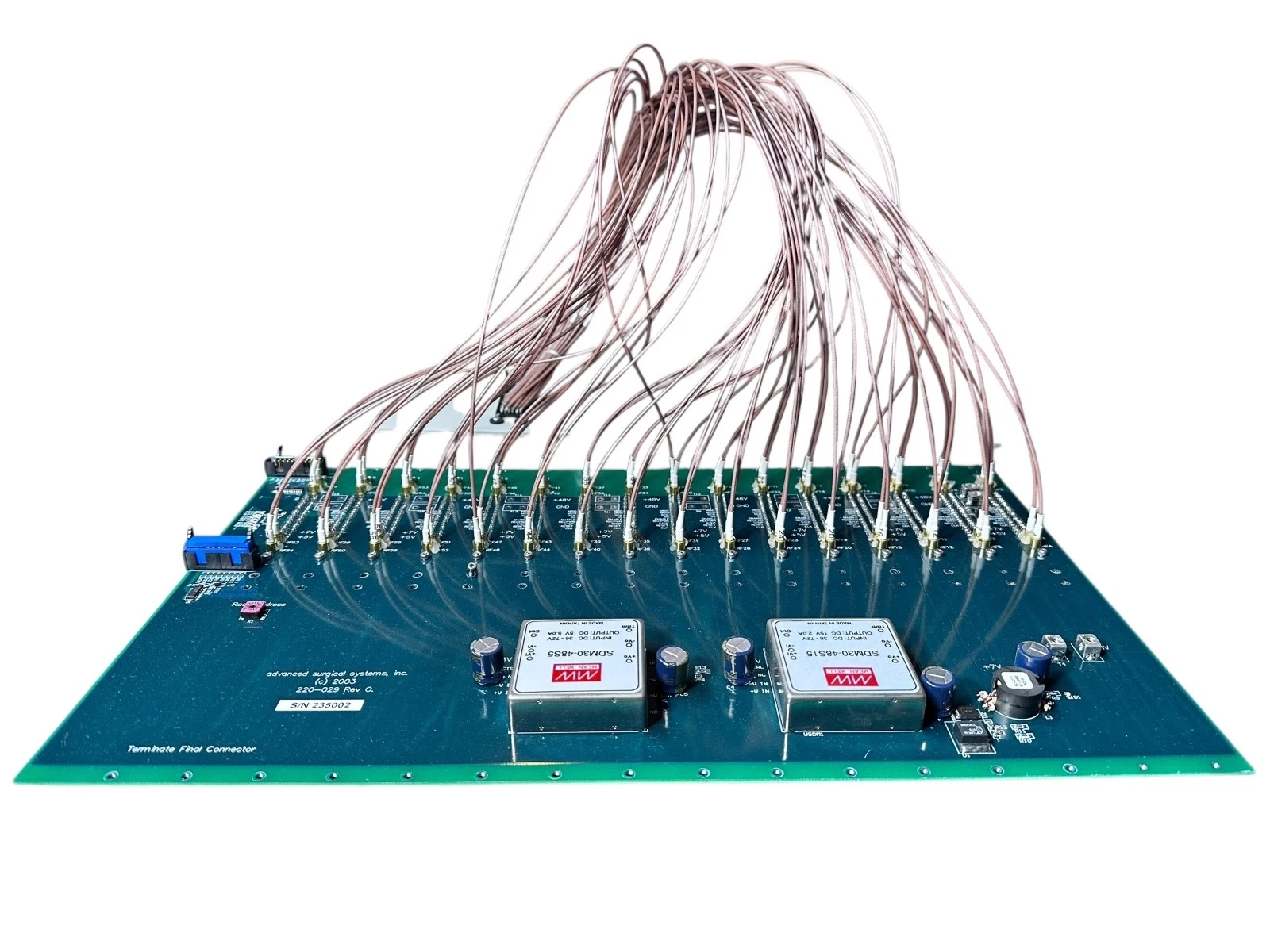

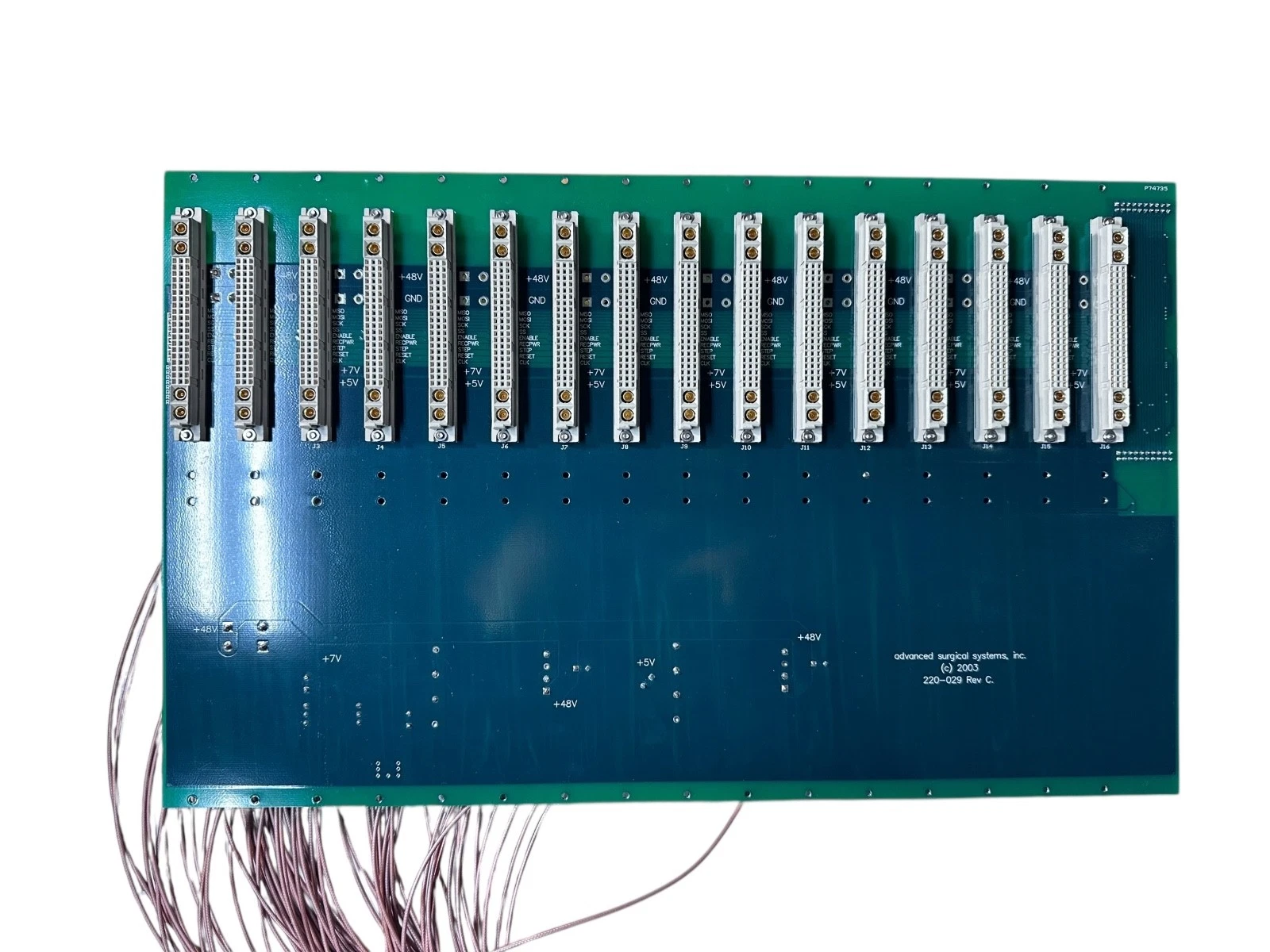

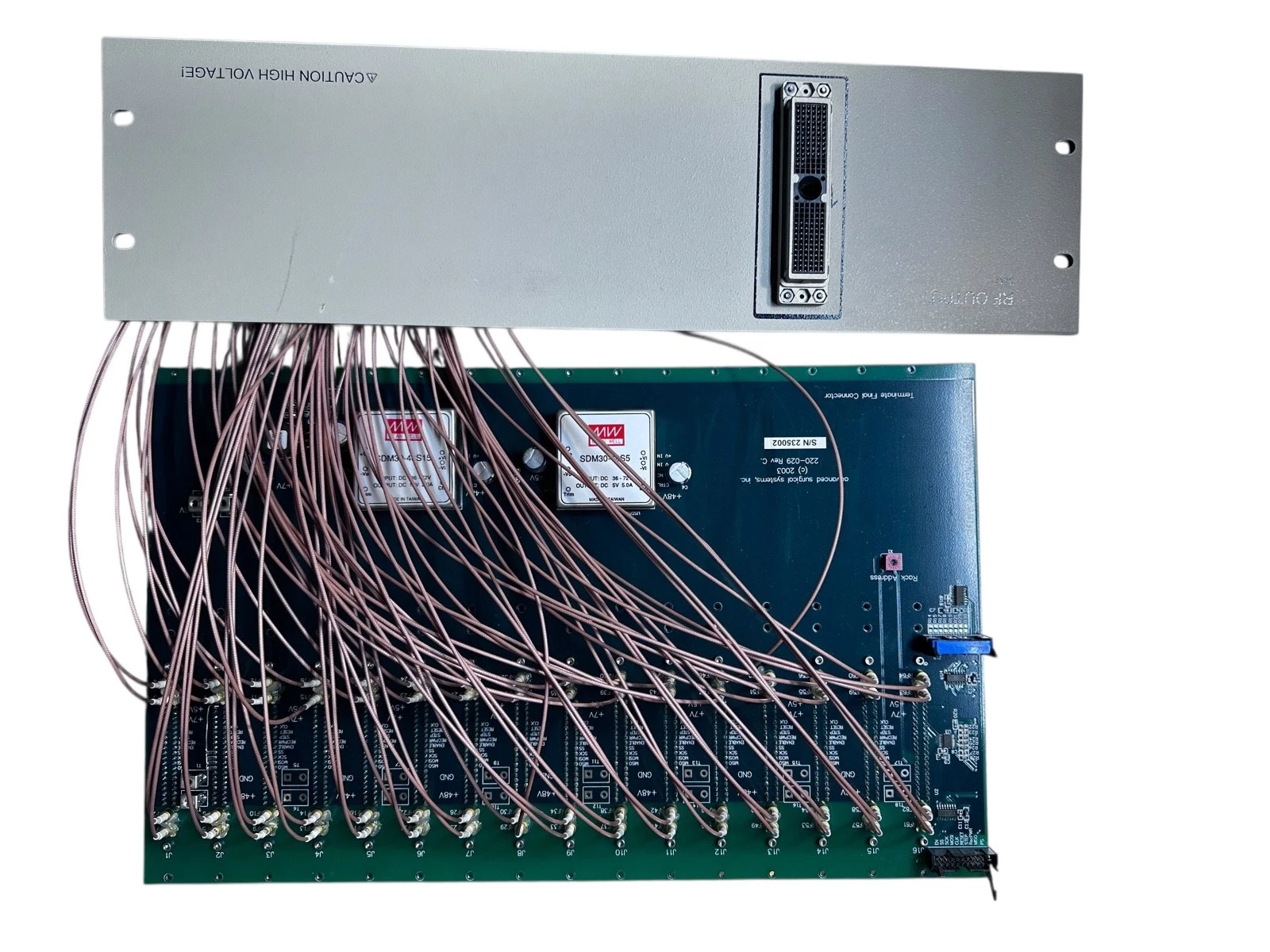

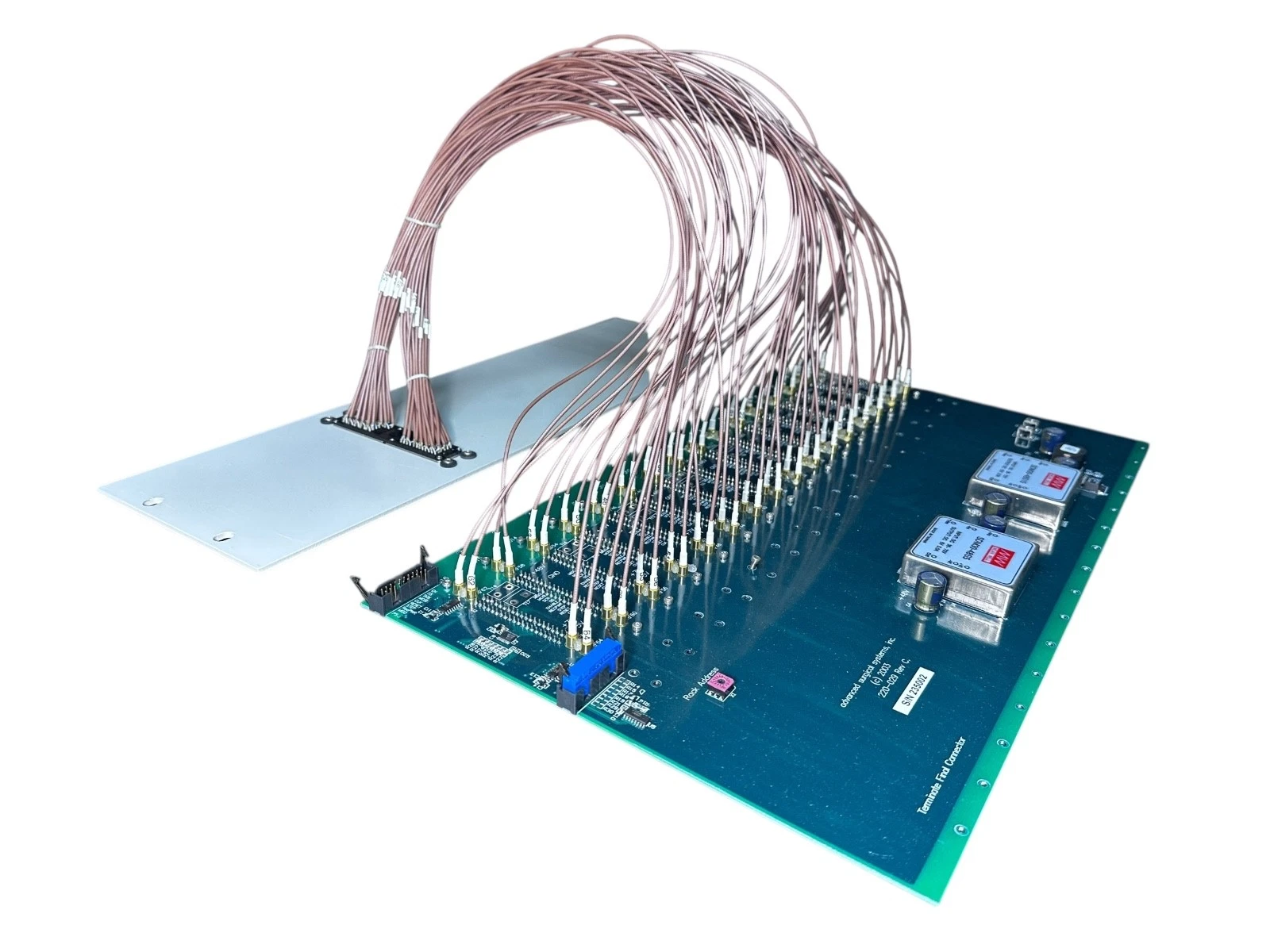

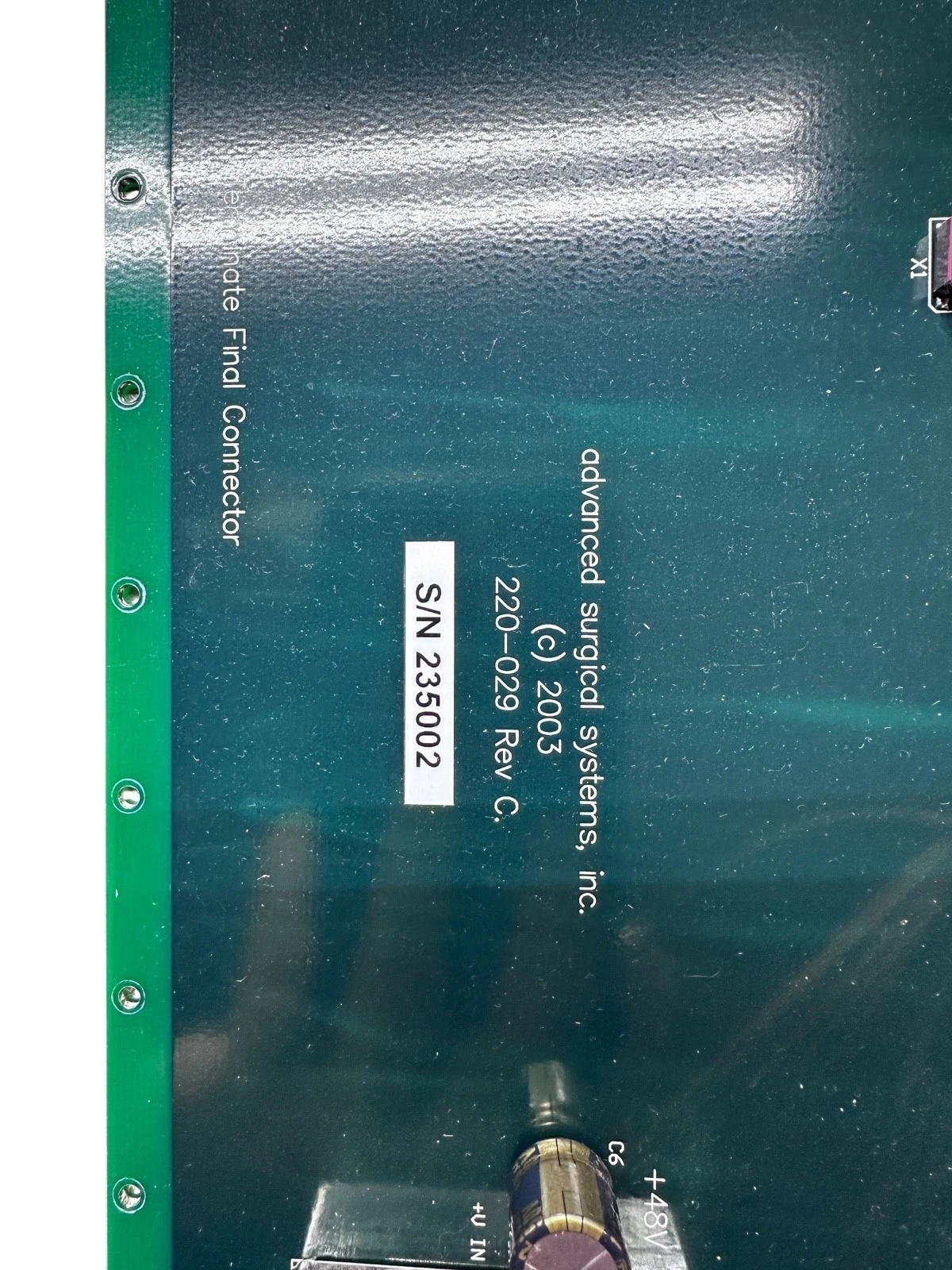

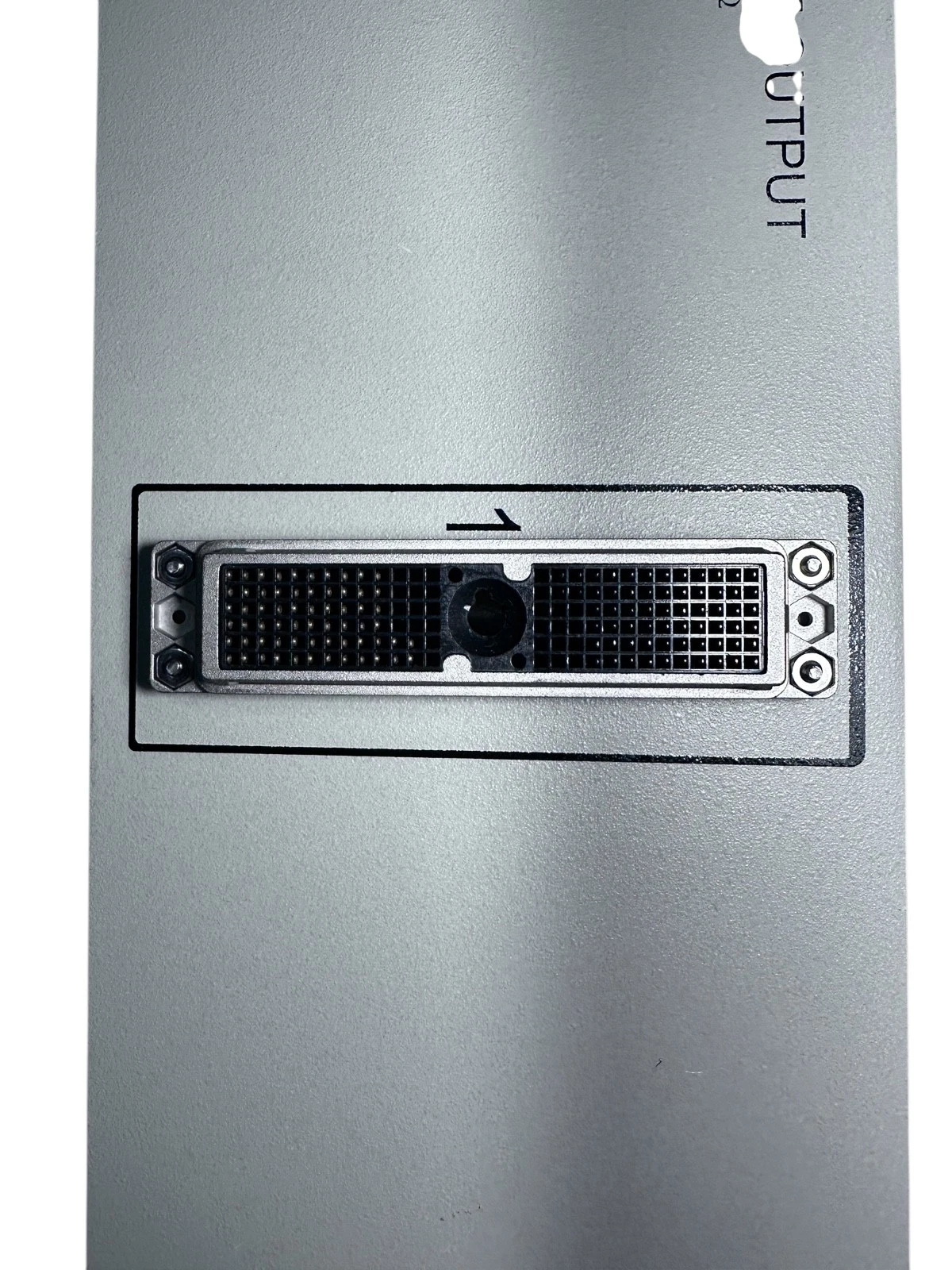

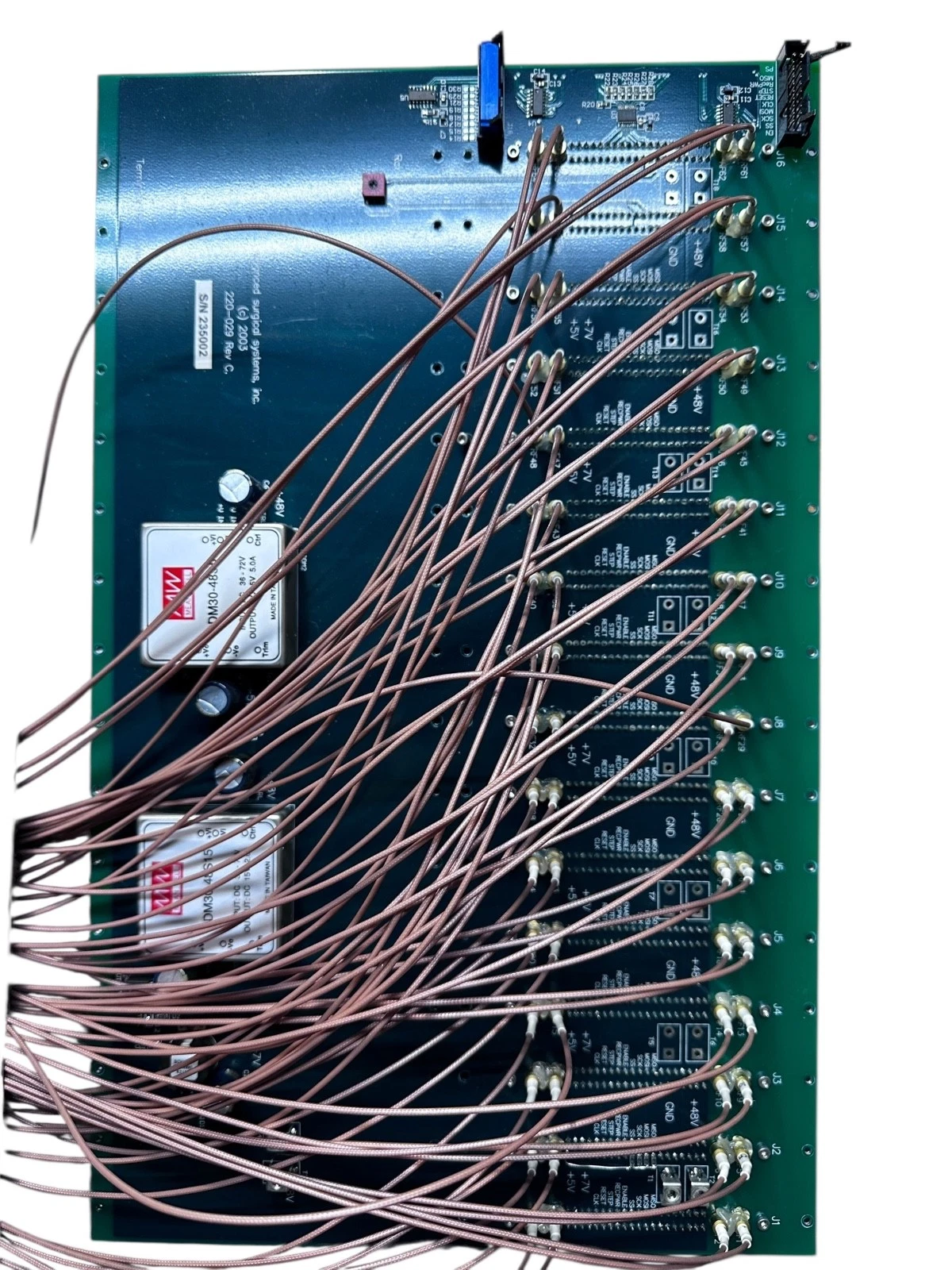

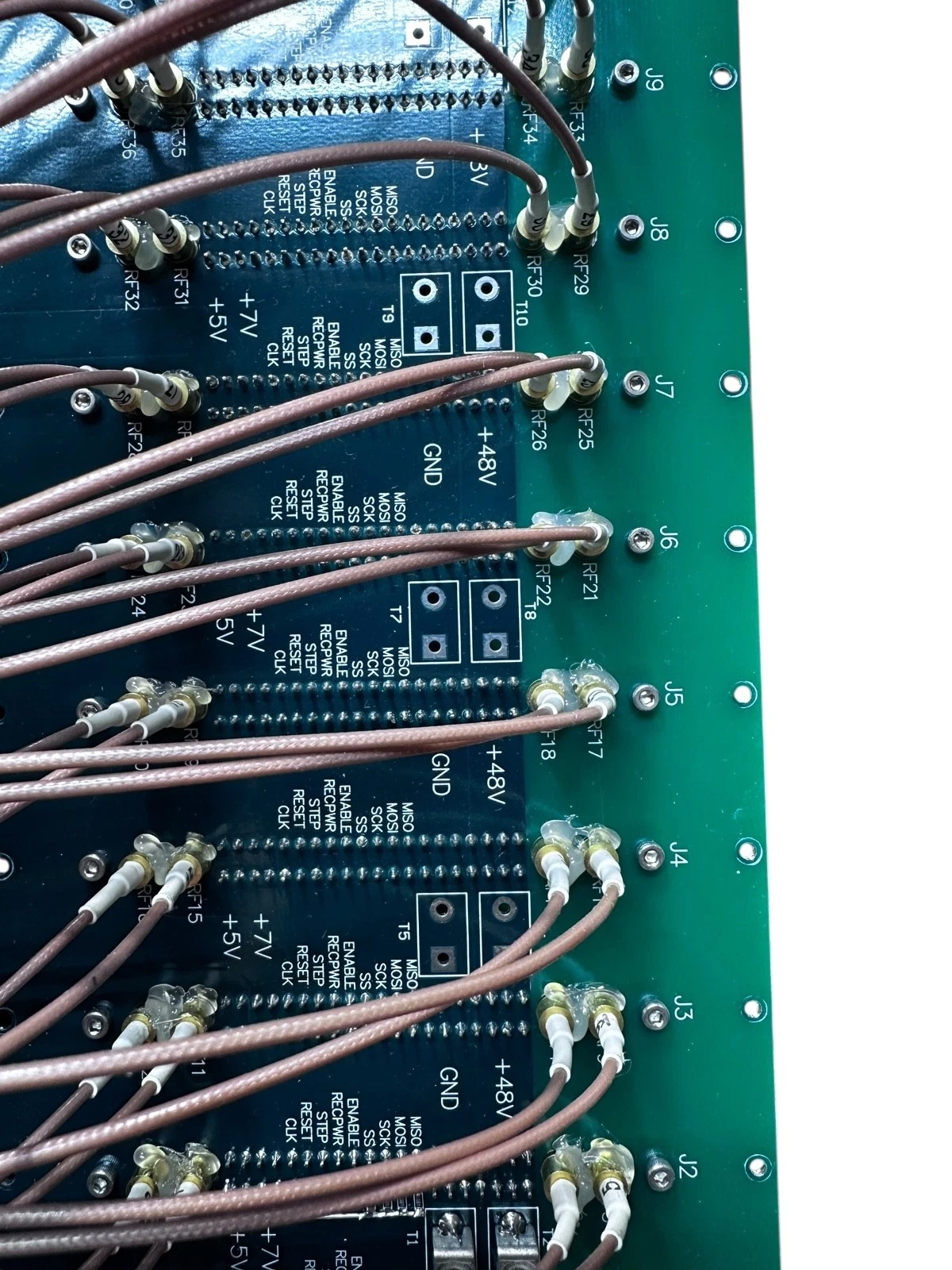

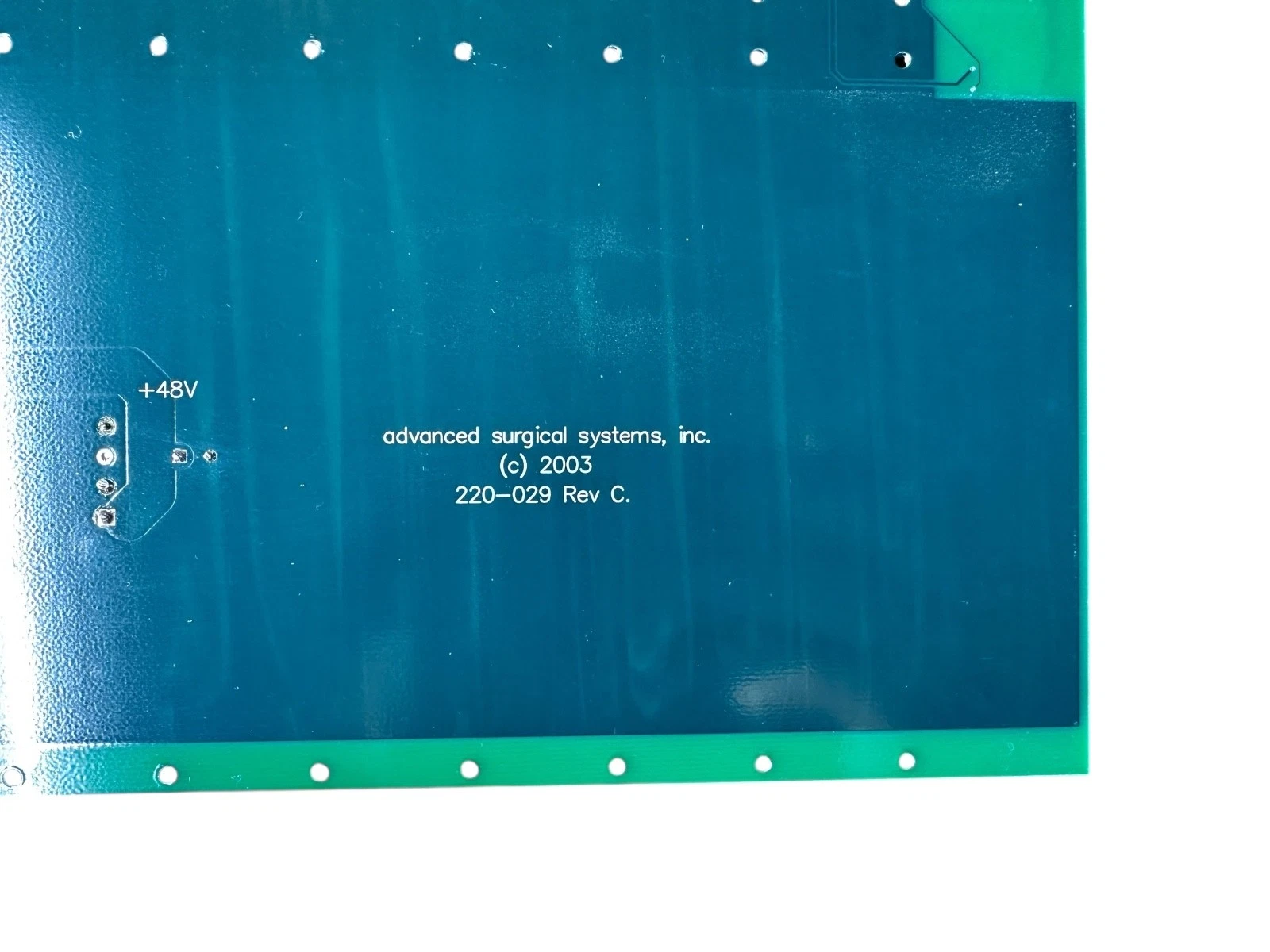

Offered is an Advanced Surgical Systems, Inc. RF Output Distribution / Backplane Assembly, removed from the same fully operational RF generator system as the previously listed control module. This is a large-format OEM medical electronics backplane, designed to distribute power, control, and RF-related signals across multiple output channels in a rack-mounted RF generator system. Identifying Information (from PCB & Labels): Manufacturer: Advanced Surgical Systems, Inc. Assembly Type: RF Output / Distribution Backplane PCB Part Number: 220-029 Revision: Rev C Copyright Date: © 2003 Serial Number: S/N 235002 Silkscreen Labels: +48V +7V +5V GND MOSI / MISO / SCK / SS ENABLE / STEP / RESET / CLK Connector Count: Multiple high-density board connectors (J-series), evenly distributed Front Panel: “RF OUTPUT” connector panel included (as shown) Construction & Components: Heavy-duty industrial PCB Multiple high-density backplane connectors Discrete coaxial signal wiring harnesses (factory installed) Integrated Mean Well DC/DC converter modules Clearly labeled test points and signal rails OEM harness routing with strain relief Overall build quality is consistent with FDA-regulated medical RF equipment and long-life clinical systems. Functionality / Testing: Removed from a known working medical RF generator Not powered or tested independently outside the original system due to specialized requirements No visible damage, burned traces, or missing components Cosmetic Condition: PCB surface: Excellent, clean, no corrosion Connectors: Intact, straight, no bent pins observed Wiring harness: Original, clean, professionally routed Front panel: Clean with minor handling marks only Included in Sale: (1) Advanced Surgical Systems RF Output / Distribution Backplane Board (1) Matching RF Output connector panel (attached, as shown) Exactly what is shown in photos No additional cables, manuals, or accessories Applications (Buyer to Verify): Medical RF generator systems OEM replacement or spare Biomedical refurbishment Engineering, research, or system integration ⚠️ This is a specialized OEM medical electronics assembly. Buyer is responsible for confirming compatibility and intended use. FDA & Equipment Disclaimer: This item is offered for research, refurbishment, replacement, or resale purposes only. It is not certified, refurbished, or reconditioned by the original manufacturer. The seller makes no claims regarding FDA approval or clinical suitability. The buyer assumes all responsibility for compliance with applicable regulations, testing, and use.
